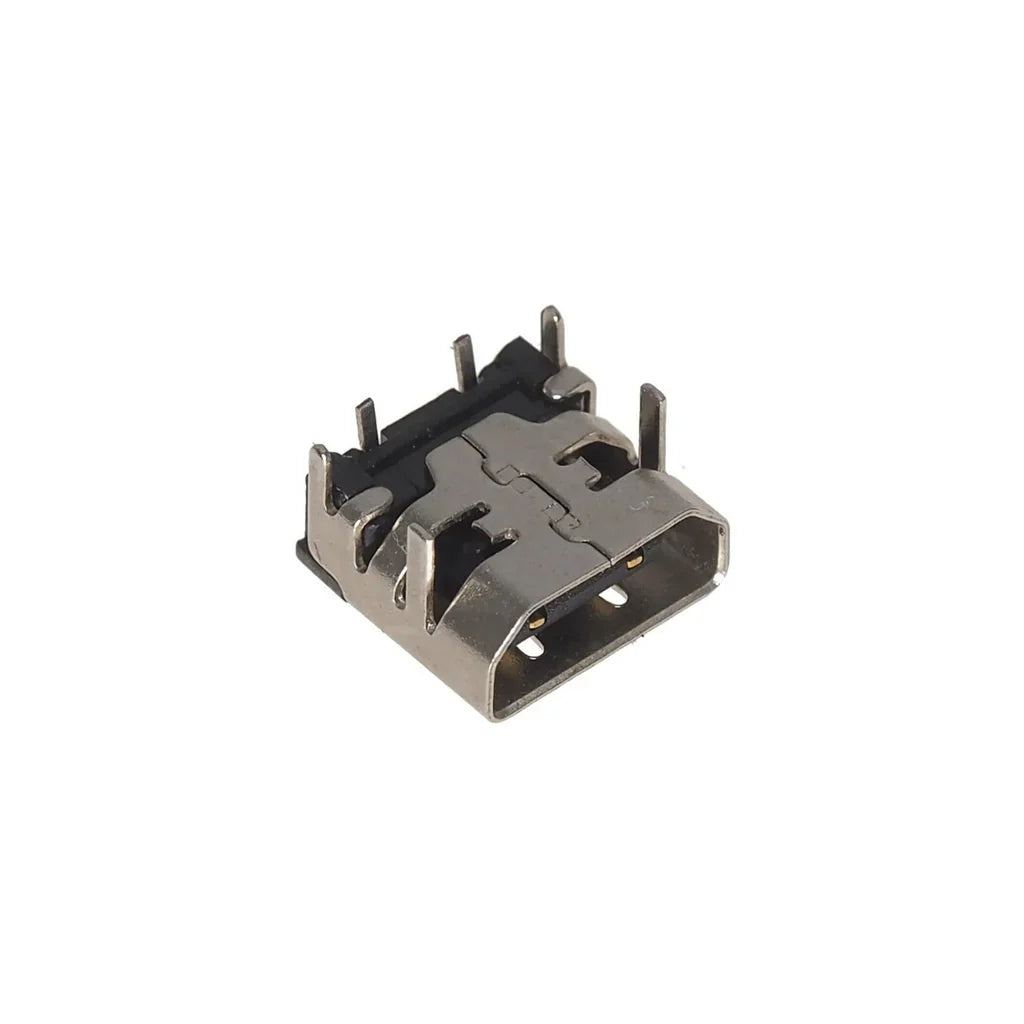

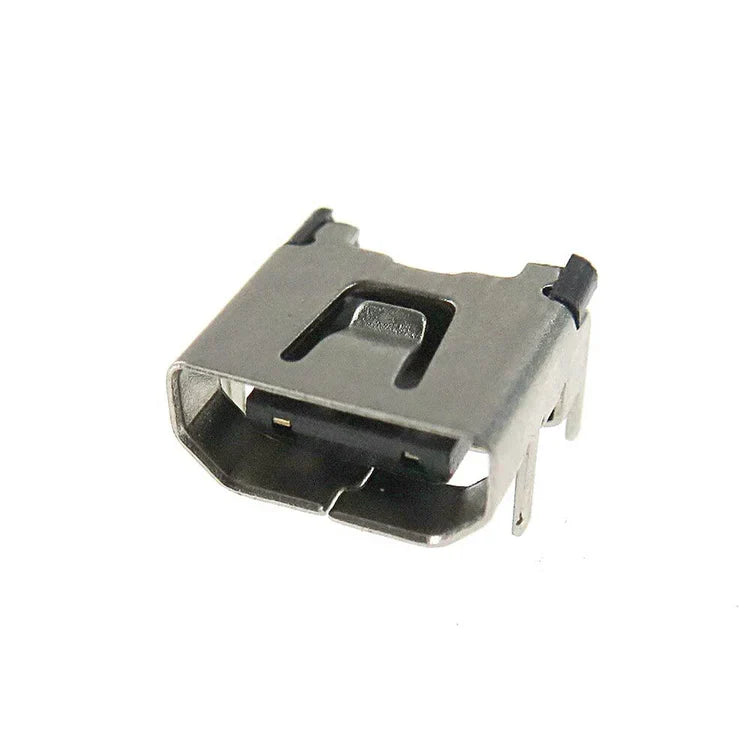

The charging port is the most common hardware failure on a DS Lite. After years of the cable being pushed in, pulled out and yanked sideways, the jack loosens on the board and the console only charges when you hold the plug just right, then stops charging at all. This is a direct replacement charging port for the Nintendo DS Lite. Solder it in and the console charges normally again.

What this fixes

Orange charge light only comes on when the cable is wiggled or held in place
No charge at all with a known-good charger
Loose, rattling or wobbly port
Bent or pushed-in port from a drop

What you get

Sold as a single port. One is all a DS Lite needs.

Fits

Nintendo DS Lite (USG-001), all colors and regions

Does not fit

The original DS "phat", DSi, DSi XL and 3DS family use different ports. We stock the DSi charging port separately.

How to install

Open the DS Lite (tri-wing and Phillips screws), remove the battery and the back shell.
Desolder the old port from the main board and clean the pads with wick.
Seat the new port, solder the pins and the anchor tabs, and check for bridges.
Reassemble and confirm the orange charge light with a charger plugged in.

Soldering job on a small board. If you are not set up for it, a local repair shop can usually fit this in under an hour with the part supplied.

Specs

Part number	P48825
Part type	DC charging port / power jack
Sold as	1 piece
Install	Soldering required
Condition	New

Common questions

Port or battery? If the light comes on when you hold the cable at an angle, it is the port. If it charges fine but dies quickly off the charger, it is the battery.

Is this the same as the DSi port? No. They look similar but are not interchangeable. Check the model number on the back label before ordering.

Is this an original Nintendo part? No, it is a third-party replacement built to the original footprint.
